Report SpywareAstra S-Nesting 2.0.0

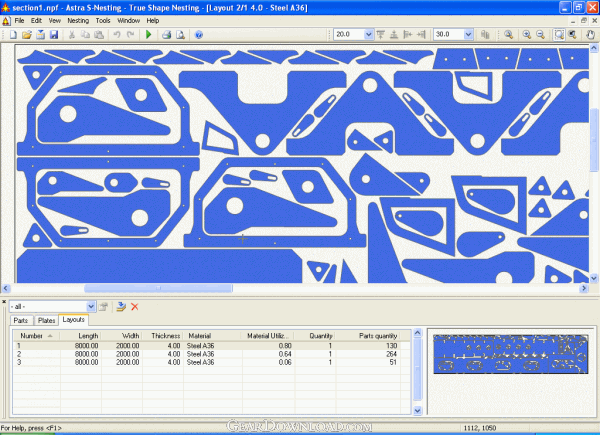

Click to enlarge screenshot
Software Description:
Astra S-Nesting - True shape nesting software for CNC cutting machine.
Astra S-Nesting software is intended for optimizing true shape nesting. The software can be used for
cutting parts from metal, fabric, leather, wood, glass, stone and other sheet materials.
All the features of Astra S-Nesting software were designed to make the nesting process as quick as
possible. Simple and intuitive tools of Astra S-Nesting allow you to quickly create an order, perform
automatic nesting, manually adjust cutting layouts, if needed, print reports and export layouts to ISO
G-codes, ESSI and DXF for processing with cutting machine.
Parts are imported from DXF files. An order can contain parts of various thicknesses and materials -
the software will automatically sort parts into nesting groups.
Quick automatic nesting allows the software to perform calculations with a high material usage ratio.
If necessary, cutting layouts can be edited manually.
The report generation system creates layout drafts and specifications.
What's New: Astra S-Nesting is intended for true shape nesting. New features have been added: automatic calculate the optimal cutting tool path; manually edit cutting tool path; customize post-processor for different CNC types; output NC data in ISO G-codes and ESSI formats for CNC cutting machines.
Limitations: You cannot print reports; When exporting to DXF, the program does not show an accurate parts count; The Evaluation version generates NC data only for two parts per layout.
Astra S-Nesting software is intended for optimizing true shape nesting. The software can be used for
cutting parts from metal, fabric, leather, wood, glass, stone and other sheet materials.
All the features of Astra S-Nesting software were designed to make the nesting process as quick as
possible. Simple and intuitive tools of Astra S-Nesting allow you to quickly create an order, perform
automatic nesting, manually adjust cutting layouts, if needed, print reports and export layouts to ISO
G-codes, ESSI and DXF for processing with cutting machine.
Parts are imported from DXF files. An order can contain parts of various thicknesses and materials -
the software will automatically sort parts into nesting groups.
Quick automatic nesting allows the software to perform calculations with a high material usage ratio.
If necessary, cutting layouts can be edited manually.
The report generation system creates layout drafts and specifications.
What's New: Astra S-Nesting is intended for true shape nesting. New features have been added: automatic calculate the optimal cutting tool path; manually edit cutting tool path; customize post-processor for different CNC types; output NC data in ISO G-codes and ESSI formats for CNC cutting machines.
Limitations: You cannot print reports; When exporting to DXF, the program does not show an accurate parts count; The Evaluation version generates NC data only for two parts per layout.
Feature List:
- Parts are imported from DXF files. A number of properties are specified for each part: material, thickness, quantity and drawing number. All these properties can be modified after importing. An order can contain parts of various thicknesses and materials – the software will automatically sort parts into nesting groups
- Quick automatic nesting allows the software to perform calculations with a high material usage ratio. If necessary, layouts can be edited manually. A number of tools are available for this purpose: you can move parts in set increments, to the nearest limit stop and freely move them with your mouse; rotate parts, set part edges in parallel; scale layouts; undo and redo commands and much more
- The report generation system creates layout drafts and specifications. Reports can be exported to Microsoft Word and Acrobat Reader
- Layouts are exported into DXF files for processing with cutting machine
- Integration with other CAD/CAM/ERP systems is one of the key principles of Astra S-Nesting. The data from your CAD/CAM/ERP system can be loaded to Astra S-Nesting, which will return the results of calculations. The program can be run from command line, import data automatically, generate the cutting layout of the order and export the results
100% Clean:
Astra S-Nesting 2.0.0 is 100% cleanThis download (astra-s-nesting.zip) was tested thoroughly and was found 100% clean. Click "Report Spyware" link on the top if you found this software contains any form of malware, including but not limited to: spyware, viruses, trojans and backdoors.
