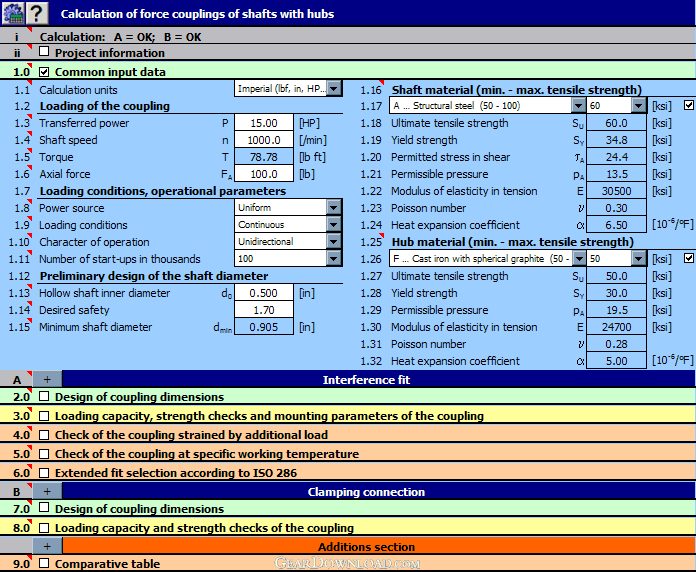

MITCalc Force shaft connection - Designs and strength checks of force couplings of shafts with hubs
The calculation is intended for geometrical design and strength check of force couplings of shafts with hubs with a cylindrical contact area (Interference fit, clamping connection). The application provides solutions for the following tasks:
- Design of force fits, possibly shrink fits.
- Design of clamping connections with separated, or one-side cut hub.
- Strength check of designed couplings.
- Check of interference fit strained by additional radial force with bending moment.
- Check of interference fit working at specific service temperature.
The calculation is based on data, procedures and algorithms from specialized literature and standards ANSI, ISO, DIN and others. List of standards: ANSI B4.1, ISO 286, DIN 7190.
This module is a part of MITCalc - Mechanical and Technical Calculation Package for gear, belt and chain drives, springs, beam, shaft, bolt connection, shaft connection, tolerances and many others.
What's New: Minor changes, translations
Limitations: 30 Days Trial

MITCalc Force shaft connection 1.20 is 100% clean
This download (MITCalcShaftconF01_64.exe) was tested thoroughly and was found 100% clean. Click "Report Spyware" link on the top if you found this software contains any form of malware, including but not limited to: spyware, viruses, trojans and backdoors.
