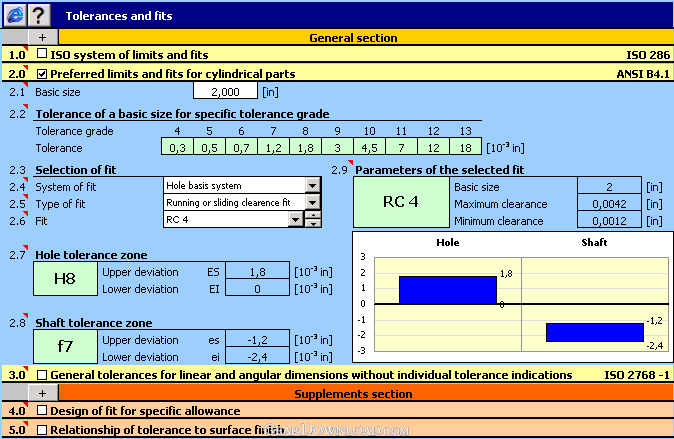

MITCalc Tolerances - Tolerances, deviations and fits of machine parts
This calculation includes tables and calculations for easy option of fits of machine parts and determination of their dimensional tolerances and deviations. Application is developed in MS Excel, is multi-language, supports Imperial and Metric units and solves the following main tasks:
- Selection of suitable fits of machine parts according to the international standard ISO 286.
- Determination of dimensional tolerances and deviations of machine parts according to the international standard ISO 286.
- Selection of preferred fits of machine parts and determination of their dimensional tolerances and deviations according to ANSI B4.1.
- Determination of non-prescribed limit deviations of linear and angular dimensions according to ISO 2768.
- Automatic design of a fit for the given clearance or fit interference respectively.
The data, procedures, algorithms and specialized literature and standards ANSI, ISO, DIN and others were used in the calculations.
Used standards: ANSI B4.1, ANSI B4.2, ISO 286, ISO 1829, ISO 2768, EN 20286, JIS B 0401This module is a part of MITCalc - Mechanical and Technical Calculation Package for gear, belt and chain drives, springs, beam, shaft, bolt connection, shaft connection, tolerances and many others.
What's New: Translations, new certificate
Limitations: 30 Days Trial

MITCalc Tolerances 1.20 is 100% clean
This download (MITCalcTolerances01_64.exe) was tested thoroughly and was found 100% clean. Click "Report Spyware" link on the top if you found this software contains any form of malware, including but not limited to: spyware, viruses, trojans and backdoors.
